Maximus 800EFI Dump Bed UTV (2 SEATS)

Maximus 800 EFI Dump-Bed UTV (2 Seats)

The Maximus 800 EFI Dump-Bed UTV is a rugged, utility-grade side-by-side built for both work and off-road recreation. Powered by a 311.4 cc or V-twin 800 cc (varies by spec) EFI engine, it delivers strong torque for towing, hauling, and trail use. It includes a fully automatic CVT transmission with forward, neutral, reverse, making it easy to operate under load.

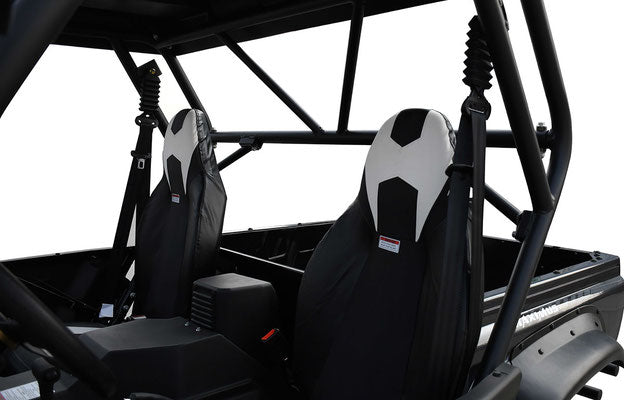

The dump bed features a hydraulic lift system for effortless unloading of material and gear. Cargo bed capacity is rated at 220 lbs. Two passengers ride in comfortable bucket seats with safety belts and a full roll cage structure. Independent front A-arm suspension and rear trailing arm or 4-link suspension absorb bumps and maintain stability in rough terrain.

Large off-road tires and hydraulic disc brakes on all four wheels give the Maximus 800 excellent traction and stopping control. With an 11-inch ground clearance, it handles obstacles and uneven ground with ease. A 6.6-gallon fuel tank gives it extended range for work or recreation.

Specifications

Engine: 311.4 cc / 800 cc EFI (V-twin depending on variant)
Transmission: Automatic CVT, forward/neutral/reverse
Drive: 4×4 capable
Start: Electric start with EFI system
Brakes: Hydraulic disc front and rear
Tires: Off-road tires (e.g. 27×9-14 front / 27×11-14 rear)
Fuel Tank Capacity: 6.6 gallons
Cargo Bed Capacity: 220 lbs
Max Load Capacity (GVW minus curb): ~500–600 lbs (varies)

Dimensions & Weight

Overall Dimensions: ~119 in (L) × 68 in (W) × 77 in (H)
Wheelbase: ~75 in
Ground Clearance: 11 in
Dry Weight (curb): ~1,448 lbs
Gross Vehicle Weight: ~1,623 lbs
Towing Capacity: ~2,200 lbs
